Navigation bar configuration

» Documentation » End user documentation » Generation
Each generated HTML page has a navigation bar (see image below). This navigation bar can be configured.

The following navigation bar entries are available:

For each navigation bar entry you can define an image and a text. If you want only the image or only the text to be displayed delete the other one. If you want an entry not to be displayed at all delete both image and text.

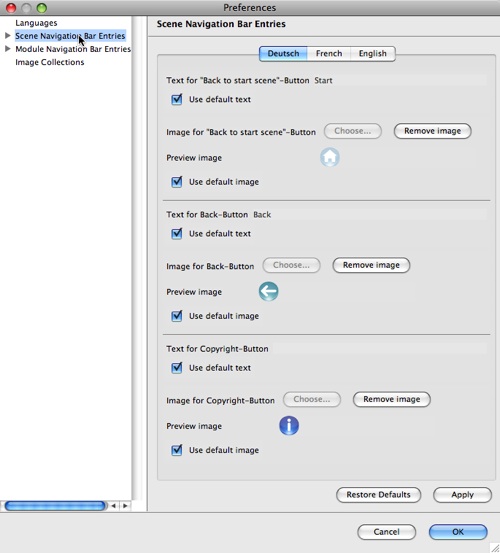

To configure the navigation bar open the Common Properties Dialog. To configure the Scene navigation bar select Scene Navigation Bar Entries (see image below). To configure the Module Navigation Bar select Module Navigation Bar Entries.

The navigation bar entries can be configured for each language. For each entry there are default values for image and text. You can use these default values or change them. To modify a default text deselect the checkbox with the label Use default text below the text field and enter (or delete) the text (see image below). To restore the default text select the checkbox again.

To change the image of an navigation bar entry deselect the Use default image checkbox first (if it is selected). Then use the Choose button to select another image or use the Remove image button to remove the image (see image below). If you want to restore the default image select the Use default image checkbox.

Notice: If you want to restore a default value you have to close the Common Properties Dialog and reopen it to see the changed values in the dialog.

If you want all languages to use the same texts or images you can change the default values of the navigation bar entries.
